ホーム 製品マシンを形成する屋根瓦ロール845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

商品の詳細:
起源の場所: 中国
ブランド名: NKH MACHINERY
証明: CE/SONCAP/CSA
モデル番号: YX41-211-845
お支払配送条件:
最小注文数量: 1 ユニット
価格: 交渉可能
パッケージの詳細: 40FTの容器、PLC制御キャビネットのための木箱のカッターと前のロールのための裸の貨物
受渡し時間: 90仕事日
支払条件: L/C, D/A, D/P, T/T
供給の能力: 5単位/月
接触

詳細情報
名前: 機械を形作る金属のタイル 原材料: プリペイントコイルシート
コイル重量: 10トンまたはご要望に応じて ローラー材料: 45# 鋼
シャフト直径: 75mm 制御システム: PLC制御システム
切刃材料: Cr12の熱処理

製品の説明

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 0

Metal Roof Tile Roll Forming Machine, Non-stop Pressing and Cutting



Application:

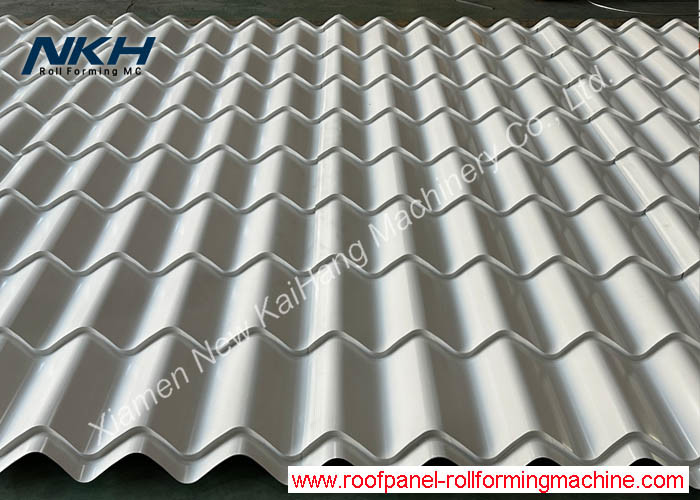

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile !



Quick Detail:

  1. Thickness : 0.4mm-0.7mm
  2. Material : High quality pre-painted coil
  3. Input width : 1220mm
  4. Effective width: 845±4mm
  5. Material weight : 10tons as standard
  6. Driven way: Gear/Sprocket driving

Machine list:

  1. Hydraulic de-coiler or manual un-coiler rack
  2. Roll former
  3. Hydraulic stair drawing device, non-stop pressing
  4. Hydraulic cutting device, non-stop cutting
  5. Stacker
  6. PLC control systems

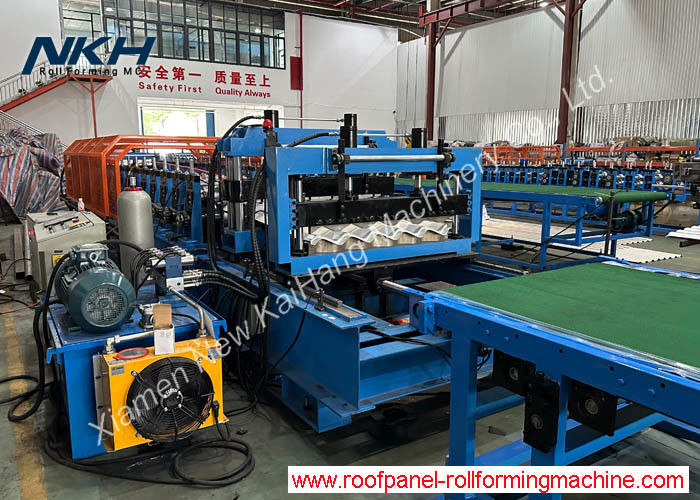

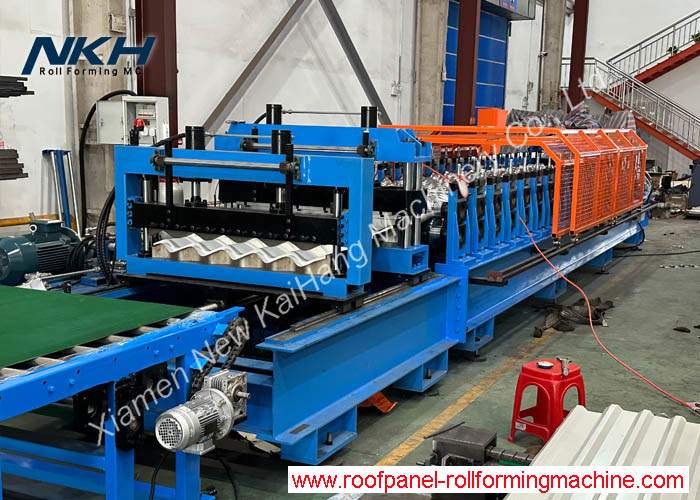

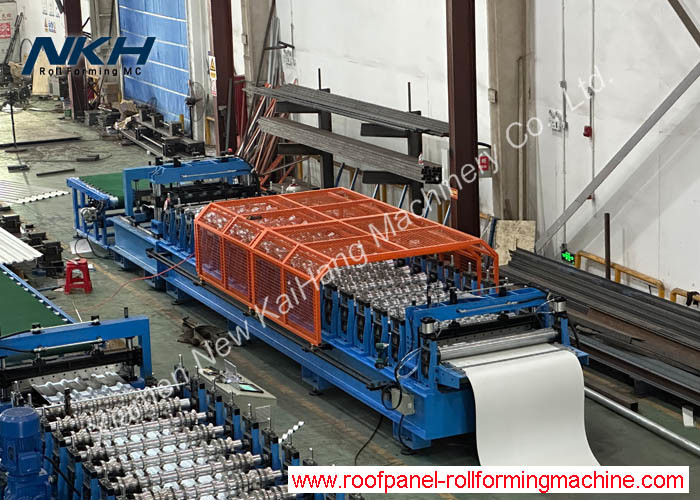

Drawings/Pictures of Complete Line:

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 1

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 2

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 3
